How Much Ambience
#1
Now that we have worked out how to create ambience with styles by utilising the Early Reflections as a master effects.

The next question being how much to use on the other tracks in your styles and indeed the sounds you play with your lower / upper sounds.

And how does adjusting the different parameters actually change the ambience?
General Music WK4, Technics Kn5000, Solton Ms60, Yamaha Psr K1, Tyros 4, Korg Pa50sd and Korg Pa700, Korg Pa5x Paas Mk2 Speaker and Yamaha Genos
[-] The following 1 user Likes musicalmemoriesuk's post:
  • Chello (01-23-2025)
Like Reply
#2
How much ?
Always a little less than you think.

The effect will work very differently on tracks other than drums and perc.
Each instrument has a different presence range, which requires a change in LEQ/HEQ, and the ER Time/Pre Delay is different for e.g. a guitar than drums; it is closer to the listener.

My setup makes the effect theoretically unsuitable for other sounds, because I have set ER Time/Pre Delay to minimum, while other sounds should actually have even lower values, because these are closer to the listener than the drums.

The effect has much less impact on sounds other than drums/perc, especially if these have been given increased ambience with the Drum Editor.

There is no way to change the ambience for other sounds (that I know of), but EQ will always have a decisive impact on the effect.

The effect is very effective for drums/perc, because the ambience here is genuine.

Different instruments have different amounts of genuine ambience added, and those with a lot will work better than those with little.

I isolate each track and increase the volume in the MFX Send while trying to find the best value, always choosing one slightly lower than the one I want, because all the tracks together give a higher value.


Working with effects is much like calculating crossovers for speakers:
The filter's component values depend on the impedance of each unit; halving the impedance is equivalent to doubling the component values.

So EQ settings for effects are a bit like the impedance of the units.
Shared knowledge provides increased knowledge
If we all share everything we have, we all have everything
Every theory is only a hypothesis until it is practically proven

KEYBOARDS, SYNTHS & MODULES I HAVE HAD AND HAVE
Casio CTK 811-ex ||| Roland EXR-7 76 ||| Yamaha DGX-620 ||| Yamaha PSR-550 ||| Yamaha PSR-S700 ||| Korg Pa800 ||| Korg Pa3X 61 ||| Deebach XMS-Pro ||| Ketron Ajamsonic ||| Casio WK-7500 ||| Yamaha Tyros5 61 ||| vArranger ||| Ketron Audya5 61 ||| Yamaha PSR S950 ||| Solton X8 Chromatic ||| Yamaha Tyros4 10th Anniversary ||| Korg Pa4X 61 ||| Roland BK-7m ||| Technics KN-6000 ||| Technics KN-7000 ||| Roli Seaboard RISE 49 ||| Deebach MAX Plus ||| Yamaha Genos ||| Korg Pa700 ||| Korg Kronos2 73 ||| Tyros4 61 ||| Deebach BlackBox ||| Korg Pa2X Pro ||| Yamaha A3000 ||| Ghenos Plus ||| Medeli AKX10 ||| Korg Nautilus 73 ||| Yamaha DGX-670 ||| Korg Krome EX-88 ||| Korg OASYS 76 Sondius-XG version ||| Korg Pa5X 76 (Pythagoras Tuned) ||| Yamaha Tyros1 ||| Ketron Audya 76 (Own developed OS) ||| Yamaha PSR-3000 ||| Yamaha 9000 Pro ||| Yamaha MODX M8 ||| Korg Grandstage X ||| Roland Juno-D7 ||| Korg Kronos 1 73 (Pythagoras Tuned)

MY PA EQUIPMENT NON-ACTIVE AND ACTIVE
Aune S6 32 bit/384 kb DAC ||| Topping USB Isolator ||| MOTU 32 bit Audio Interface ||| TEYUN Q26 32 bit/384 kb Audio Interface ||| FM Acoustics FM 300A Power amp ||| FM Acoustics FM 255 Resolution Series Pre amp ||| MBL 6010 Pre Amp ||| STAX SR-L300 (Lambda) electrostatic headphones with STAX SRM-252S Amplifier ||| beyerdynamic T70 headphones (without pads) ||| Baffle horns equipped with Seas Exotic 8" fullrange units ||| JBL horns with Compression Planar membranes ||| Fountek NeoPro 5i (Special Edition) ribbon tweeters with Compression Planar membranes ||| Hexagonal subwoofer with 12 pieces Push&Pull coupled Seas Prestige 8" units, 1 item 10" slave unit and built-in XTZ power amplifiers & Cambridge Azur 640A as pre amplifier ||| Yamaha HS-5 active monitors connected to all keyboards
[-] The following 2 users Like Chello's post:
  • musicalmemoriesuk (01-23-2025), welsh wizard (01-23-2025)
Like Reply
#3


These are my observations

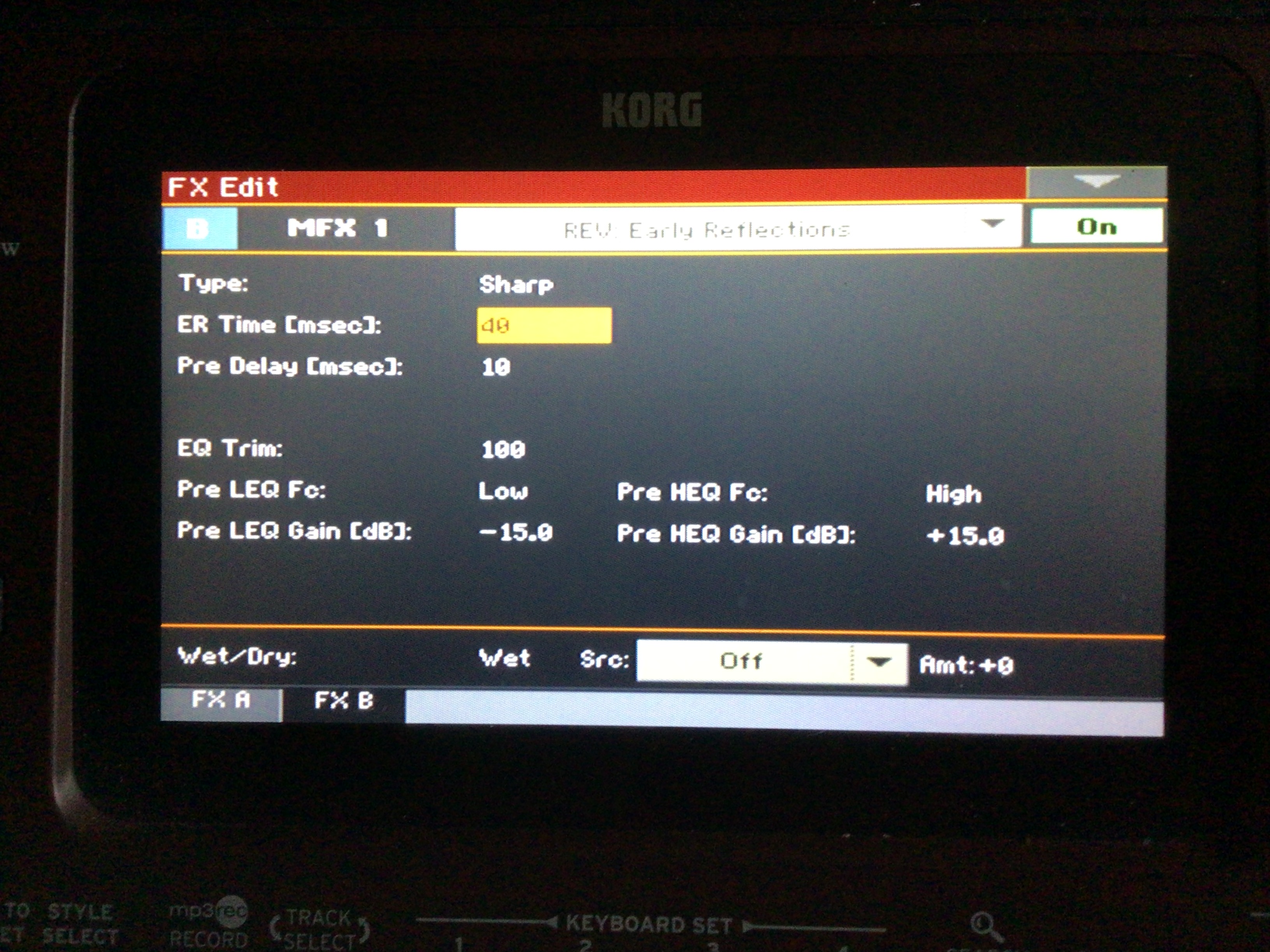

let’s have a look at the parameters firstly

ER Time :

This parameter defines the size of the space the higher the value the larger the space.

Pre Delay :

The pushes the early reflections backwards or forwards in the space making the early reflections sound longer or shorter. But this value works kind of opposite to the ER Time.

The higher value here the shorter the reflections are, the lower the value the longer the reflections are and thus creating the impression of a more empty space.

The Pre HEQ value also affects the ambience of the space, the high the gain value ie +15 db the brighter the space sounds go for something completely opposite and ie -15 db and you get a darker sounding space.
General Music WK4, Technics Kn5000, Solton Ms60, Yamaha Psr K1, Tyros 4, Korg Pa50sd and Korg Pa700, Korg Pa5x Paas Mk2 Speaker and Yamaha Genos
[-] The following 2 users Like musicalmemoriesuk's post:
  • Chello (01-23-2025), welsh wizard (01-23-2025)
Like Reply
#4
(01-23-2025, 04:59 PM)musicalmemoriesuk Wrote: These are my observations

let’s have a look at the parameters firstly

ER Time :

This parameter defines the size of the space the higher the value the larger the space.

Pre Delay :

The pushes the early reflections backwards or forwards in the space making the early reflections sound longer or shorter. But this value works kind of opposite to the ER Time.

The higher value here the shorter the reflections are, the lower the value the longer the reflections are and thus creating the impression of a more empty space.

The Pre HEQ value also affects the ambience of the space, the high the gain value ie +15 db the brighter the space sounds go for something completely opposite and ie -15 db and you get a darker sounding space.


68
Shared knowledge provides increased knowledge
If we all share everything we have, we all have everything
Every theory is only a hypothesis until it is practically proven

KEYBOARDS, SYNTHS & MODULES I HAVE HAD AND HAVE
Casio CTK 811-ex ||| Roland EXR-7 76 ||| Yamaha DGX-620 ||| Yamaha PSR-550 ||| Yamaha PSR-S700 ||| Korg Pa800 ||| Korg Pa3X 61 ||| Deebach XMS-Pro ||| Ketron Ajamsonic ||| Casio WK-7500 ||| Yamaha Tyros5 61 ||| vArranger ||| Ketron Audya5 61 ||| Yamaha PSR S950 ||| Solton X8 Chromatic ||| Yamaha Tyros4 10th Anniversary ||| Korg Pa4X 61 ||| Roland BK-7m ||| Technics KN-6000 ||| Technics KN-7000 ||| Roli Seaboard RISE 49 ||| Deebach MAX Plus ||| Yamaha Genos ||| Korg Pa700 ||| Korg Kronos2 73 ||| Tyros4 61 ||| Deebach BlackBox ||| Korg Pa2X Pro ||| Yamaha A3000 ||| Ghenos Plus ||| Medeli AKX10 ||| Korg Nautilus 73 ||| Yamaha DGX-670 ||| Korg Krome EX-88 ||| Korg OASYS 76 Sondius-XG version ||| Korg Pa5X 76 (Pythagoras Tuned) ||| Yamaha Tyros1 ||| Ketron Audya 76 (Own developed OS) ||| Yamaha PSR-3000 ||| Yamaha 9000 Pro ||| Yamaha MODX M8 ||| Korg Grandstage X ||| Roland Juno-D7 ||| Korg Kronos 1 73 (Pythagoras Tuned)

MY PA EQUIPMENT NON-ACTIVE AND ACTIVE
Aune S6 32 bit/384 kb DAC ||| Topping USB Isolator ||| MOTU 32 bit Audio Interface ||| TEYUN Q26 32 bit/384 kb Audio Interface ||| FM Acoustics FM 300A Power amp ||| FM Acoustics FM 255 Resolution Series Pre amp ||| MBL 6010 Pre Amp ||| STAX SR-L300 (Lambda) electrostatic headphones with STAX SRM-252S Amplifier ||| beyerdynamic T70 headphones (without pads) ||| Baffle horns equipped with Seas Exotic 8" fullrange units ||| JBL horns with Compression Planar membranes ||| Fountek NeoPro 5i (Special Edition) ribbon tweeters with Compression Planar membranes ||| Hexagonal subwoofer with 12 pieces Push&Pull coupled Seas Prestige 8" units, 1 item 10" slave unit and built-in XTZ power amplifiers & Cambridge Azur 640A as pre amplifier ||| Yamaha HS-5 active monitors connected to all keyboards
[-] The following 2 users Like Chello's post:
  • musicalmemoriesuk (01-23-2025), welsh wizard (01-23-2025)
Like Reply
#5

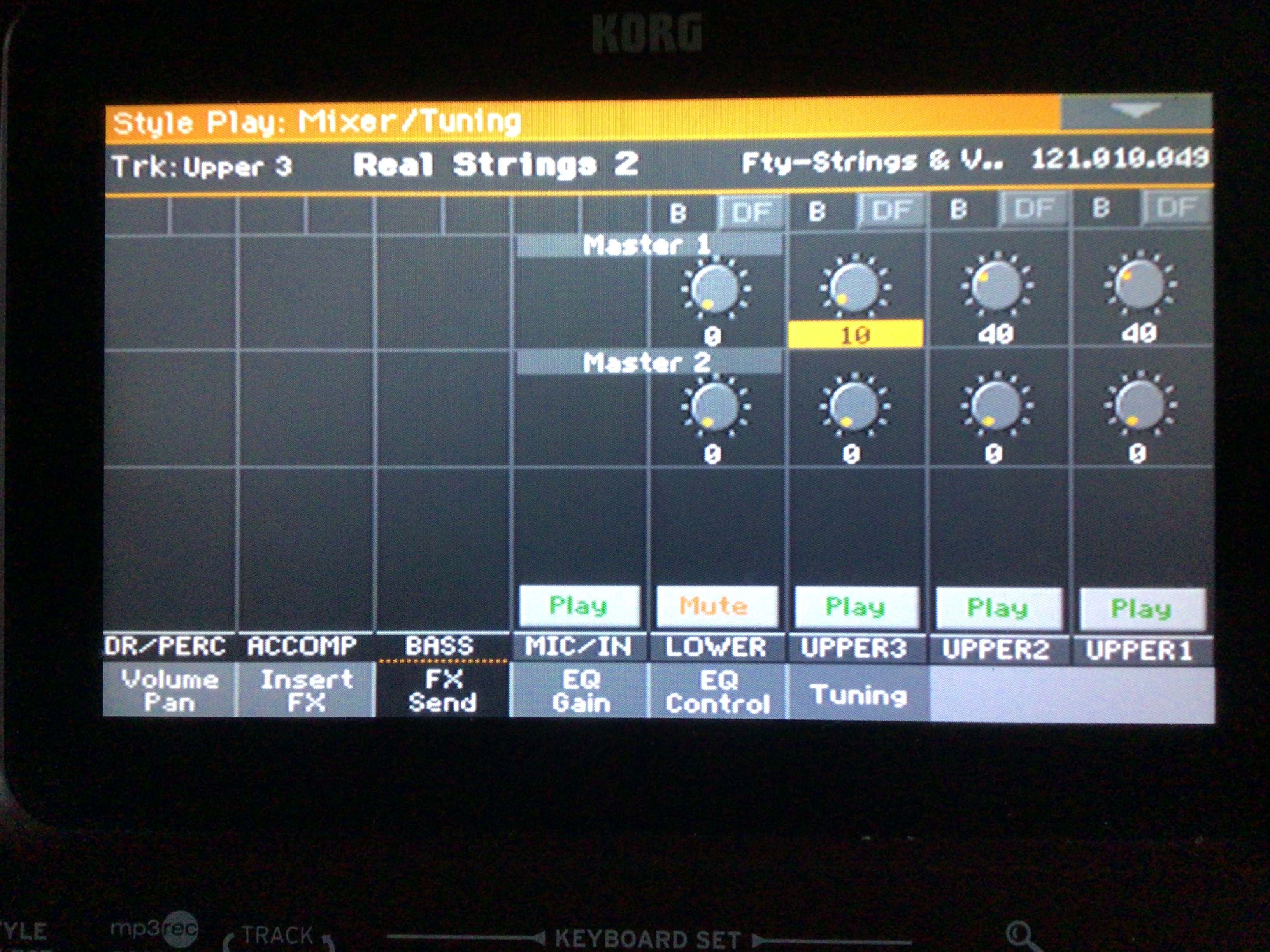

Next for the how much of the ambience you wish add to the sound.

The lower the send the less ambience added to the sound and thus sounding closer.

The higher the send the more ambience added to the sound giving the impression the sound is further away which would also more of the room / spaces ambience added.
General Music WK4, Technics Kn5000, Solton Ms60, Yamaha Psr K1, Tyros 4, Korg Pa50sd and Korg Pa700, Korg Pa5x Paas Mk2 Speaker and Yamaha Genos
[-] The following 1 user Likes musicalmemoriesuk's post:
  • welsh wizard (01-23-2025)
Like Reply
#6
I have now used the same setup for my latest converted styles, and used the effect with the same parameters for all tracks.

It works reasonably well, but internal styles are much better with this effect.

Internal styles usually have Reverb Room as the effect in FX3, and I keep the values in FX3 from this, and only change the effect to Early Reflections.
Shared knowledge provides increased knowledge
If we all share everything we have, we all have everything
Every theory is only a hypothesis until it is practically proven

KEYBOARDS, SYNTHS & MODULES I HAVE HAD AND HAVE
Casio CTK 811-ex ||| Roland EXR-7 76 ||| Yamaha DGX-620 ||| Yamaha PSR-550 ||| Yamaha PSR-S700 ||| Korg Pa800 ||| Korg Pa3X 61 ||| Deebach XMS-Pro ||| Ketron Ajamsonic ||| Casio WK-7500 ||| Yamaha Tyros5 61 ||| vArranger ||| Ketron Audya5 61 ||| Yamaha PSR S950 ||| Solton X8 Chromatic ||| Yamaha Tyros4 10th Anniversary ||| Korg Pa4X 61 ||| Roland BK-7m ||| Technics KN-6000 ||| Technics KN-7000 ||| Roli Seaboard RISE 49 ||| Deebach MAX Plus ||| Yamaha Genos ||| Korg Pa700 ||| Korg Kronos2 73 ||| Tyros4 61 ||| Deebach BlackBox ||| Korg Pa2X Pro ||| Yamaha A3000 ||| Ghenos Plus ||| Medeli AKX10 ||| Korg Nautilus 73 ||| Yamaha DGX-670 ||| Korg Krome EX-88 ||| Korg OASYS 76 Sondius-XG version ||| Korg Pa5X 76 (Pythagoras Tuned) ||| Yamaha Tyros1 ||| Ketron Audya 76 (Own developed OS) ||| Yamaha PSR-3000 ||| Yamaha 9000 Pro ||| Yamaha MODX M8 ||| Korg Grandstage X ||| Roland Juno-D7 ||| Korg Kronos 1 73 (Pythagoras Tuned)

MY PA EQUIPMENT NON-ACTIVE AND ACTIVE
Aune S6 32 bit/384 kb DAC ||| Topping USB Isolator ||| MOTU 32 bit Audio Interface ||| TEYUN Q26 32 bit/384 kb Audio Interface ||| FM Acoustics FM 300A Power amp ||| FM Acoustics FM 255 Resolution Series Pre amp ||| MBL 6010 Pre Amp ||| STAX SR-L300 (Lambda) electrostatic headphones with STAX SRM-252S Amplifier ||| beyerdynamic T70 headphones (without pads) ||| Baffle horns equipped with Seas Exotic 8" fullrange units ||| JBL horns with Compression Planar membranes ||| Fountek NeoPro 5i (Special Edition) ribbon tweeters with Compression Planar membranes ||| Hexagonal subwoofer with 12 pieces Push&Pull coupled Seas Prestige 8" units, 1 item 10" slave unit and built-in XTZ power amplifiers & Cambridge Azur 640A as pre amplifier ||| Yamaha HS-5 active monitors connected to all keyboards
[-] The following 1 user Likes Chello's post:
  • welsh wizard (01-23-2025)
Like Reply
